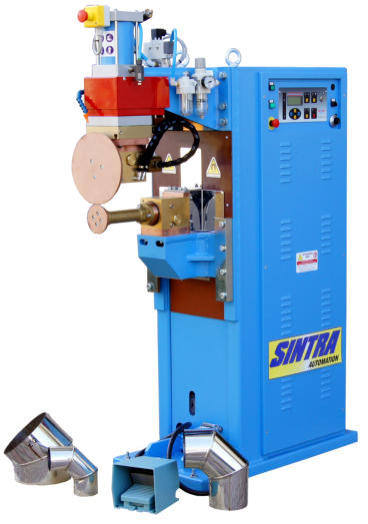

RotoSpot
Roller spot welding machine for elbows sector.
Puntatrice a rulli per saldatura settori di gomiti.
SPECIFICATIONS:
Name: RotoSpot
Model: 450.80.5
Electrical: 400V - 50KVA.
System Control: PLC.
Air pressure: 8 bar
Materials: iron, stainless, galvanized.
Thickness: 0.4 - 2.0 mm.
Diameter range: Ø 60 - 800 mm.
Work Speed: max 5 Mt/min.
Pieces per hour: 10 - 120 pz/h.
Dimensions LxWxH: 1400x1000x1600 mm.
Weight: 900Kg.
RotoSpot
Roller spot welding machine for elbows sector.
Puntatrice a rulli per saldatura settori di gomiti.
SPECIFICATIONS:
Name: RotoSpot
Model: 450.80.5
Electrical: 400V - 50KVA.
System Control: PLC.
Air pressure: 8 bar
Materials: iron, stainless, galvanized.
Thickness: 0.4 - 2.0 mm.
Diameter range: Ø 60 - 800 mm.
Work Speed: max 5 Mt/min.
Pieces per hour: 10 - 120 pz/h.
Dimensions LxWxH: 1400x1000x1600 mm.
Weight: 900Kg.
